SMART PRO

Variable Speed

Swimming Pool Pump

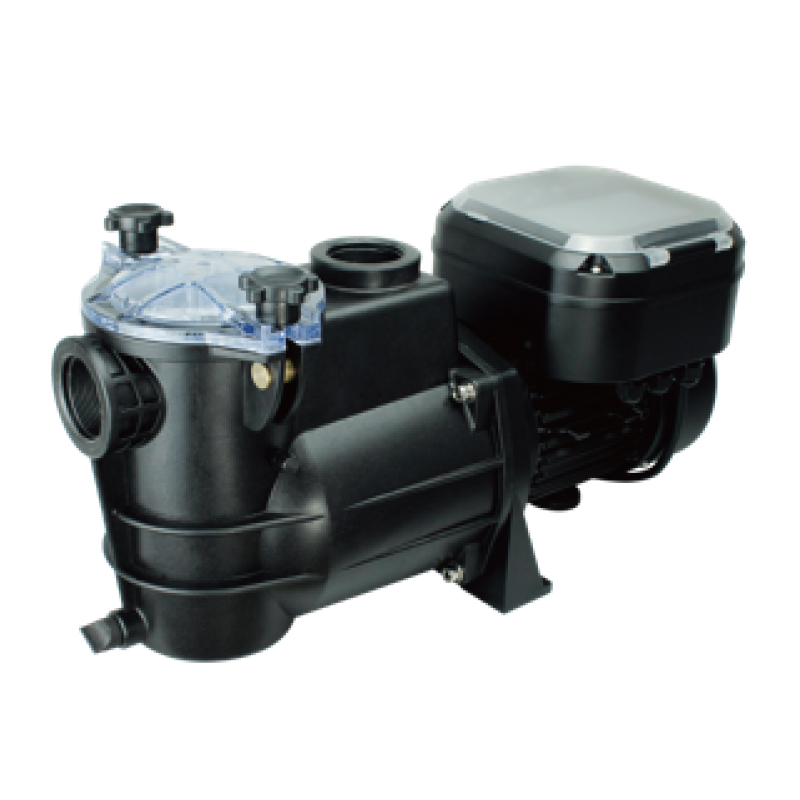

Starmatrix SMP-WA551 / SMP-WA552 Energy Saving Air Cooled Variable Speed Swimming Pool Pump

Description
Product Description
Construction Features
Description

• Quiet running single-stage centrifugal pumps with prefilter.
• Super energy saving with high efficiency permanent magnet motor and the optimized design of pump flow channel.
• Energy saving can be up to 90% on electricity cost.
• Super Intelligent built-in inverter makes operation much easier.
• Variable speed provides users with different flow rate demand.
• Timer function in programming brings users enjoying different RPM as they wish in 4 different periods in a day.

APPLICATIONS
• Circulating filtered water for domestic swimming pool.
• Suitable for both in-ground and above ground swimming pools.

Product Description

• Operating range: up to 85 GPM with head of up to 52 feet.
• Pumped liquid: clean water, or slightly contaminated water with
• Suspended solid debris, or long fibres.
• Pumped liquid temperature range: up to 40 °C.
• Maximum ambient temperature: 50 °C.
• Maximum operating pressure: 2.0 bar.
• Nominal working pressure: 0,8 - 1,0 Bar
• Installation: fixed or portable, horizontal position.
• Special executions on requests: alternative frequencies and voltages.
• Connectors on request: 1,5” or 2”
• Protection class: IPX5.
• Insulation class: F
• Standard voltage: single-phase 230V/60Hz or 115V/60Hz

Construction Features

• Fibreglass reinforced polypropylene pump body. Transparent antioxidant polycarbonate prefilter cover ensuring.

• Constant visibility over the long period. Polypropylene strainer. Fibreglass reinforced PPO impeller designed to ensure.

• Total cover and insulation of the motor shaft from the pumped liquid. Reinforced polypropylene diffuser. Silicone.

• Rubber pump body O-ring, AISI304 stainless steel reinforcement ring nuts and screws. Butterfly filling and drain plugs.

• That can be removed and refitted without tools.

certificate

SMP-WA551 / SMP-WA552

Voltage/Hz 115V/60 Hz
230V/60 Hz
Total HP 0.75 HP
Max Head 41 feet
Max Flow Rate 65 GPM
RPM Range 1200-3450 RPM
Connector Size 1.5” X1.5” or 2” X 2”

Product Structure

01分解图

230V/50Hz Performance Curve

02线性图

Size

03尺寸图
